Wholesale Price Cast Iron Pipe Connector - QIAO150 lbs 3/4" malleable iron pipe fitting thread flange with four holes – Jinmai Casting Detail:

Overview
Quick Details
Material:
Iron
Technics:
Casting
Type:
Flange
Place of Origin:
Hebei, China (Mainland)
Model Number:
321
Brand Name:
QIAO,QXM,CWD
Connection:
Female
Shape:
Equal
Head Code:
plain
standard:
npt,bs,din, pipe flange
color:
hot dipped galvanized,electric galvanized,bake galvanized
surface:
galvanized pipe flange
size:
11/2"
Elongation:
>8%
pressure:
2.4Mpa
certificate:
ISO9001&BV
usage:
joint pipeline
test:
100% pressure test
name:
flange
SupplyAbility
SupplyAbility:
2000 Metric Ton/Metric Tons per Month 25000tons/year

Packaging & Delivery
Packaging Details

<dd class="do-entry-item-val" title="pipe flange–[standard exporting packing,inner plastic packing,outer carton with/without pallet
flange">pipe flange--[standard exporting packing,inner plastic packing,outer carton with/without pallet
flange

Port
tianjin
Lead Time :
about 35days per container

{"detailModule.supplyAbility.tip":"If you finish the payment today, your order will ship out within the delivery date.","detailModule.supplyAbility.title":"SupplyAbility"}

.richtext [data-maya] { width: 750px; font-size:14px; }

1.Product Features:





QIAO 150 lbs  3/4"malleable iron pipe fitting thread flange with four holes





HEBEI JINMAI CASTING CO,.LTD.(Luquan zhandao qiaoxi malleable iron pipe fittings CO,.LTD)







No.322

item

Malleable iron pipe fittings: socket,elbow,bend,union,bushing,flange,nipples,quick coupling,

crosses over,back nut,ect

Malleable iron threaded fittings of lining plastic

Material

malleable iron

size

1/8”-6”

connection

female

standard

British standard threads, American standard threads and DIN standard threads

edge

plain

shape

equal

color

Galvanized and black

surface

Hot dipped galvanized ,electric galvanized and black,bake gal

Packing detail

Cartons with/without pallet or woven bags and your special requirement can be accepted

usage

Suitable for jointing pipe line to water, gas and oil ,ect as media

brand

QIAO,QXM,W

technical data

mechanical properties:Tensile strength HB180>330N/mm2,

Working pressure=1.6Mpa,

Elongation>8%

Hardness<HB180

Hydrostatic testing:2.4Mpa for water leakage, 0.5Mpa for gas

MOQ :1000 or 1tons

Delivery time: 28 days



2.Package:

1)plastic bag inner then A carton (470mmx305mmx195mm) or B carton(305mmx240mmx195mm)

2) in cartons with pallet

3)in woven bags

QIAO150 lbs 3/4" malleable iron pipe fitting thread flange with four holes



3.Factory Features

1)long history:built in 1994

2)advanced technology and automatic produt line



3)ISO9001&BV certificate

QIAO150 lbs 3/4" malleable iron pipe fitting thread flange with four holesQIAO150 lbs 3/4" malleable iron pipe fitting thread flange with four holesQIAO150 lbs 3/4" malleable iron pipe fitting thread flange with four holes

4)various malleable iron pipe fittings and ling plastic fittings

5)can produce various malleable iron pipe fittings according to coustomers’ drawings or samples



QIAO150 lbs 3/4" malleable iron pipe fitting thread flange with four holes

 QIAO150 lbs 3/4" malleable iron pipe fitting thread flange with four holesQIAO150 lbs 3/4" malleable iron pipe fitting thread flange with four holes

4.Service:

1)promp shipment:by reputed shipping line and professional documents

2)cargos photo:before and after loading into container

3)packing :new and strong seaworthy packing; as buyer’s special request

4) best service after shipment with email

5) feedback email after endusers received the cargo

6)offer service in 24 hours x 365 days



5.Standards:

British standard

American standard

DIN standard

Materials:ISO5922

Materials:ANSI/ASME/A197-79

Material:DIN1692

DimensionLISO49

Dimensions:ANSI/ASME B16.3-85

Dimensions:DIN2950

Threads:ISO7/1

Threads:ANSI/ASME B1.20.1

Thread:DIN 2999



6.Malleable iron pipe fittings:

QIAO150 lbs 3/4" malleable iron pipe fitting thread flange with four holesQIAO150 lbs 3/4" malleable iron pipe fitting thread flange with four holes

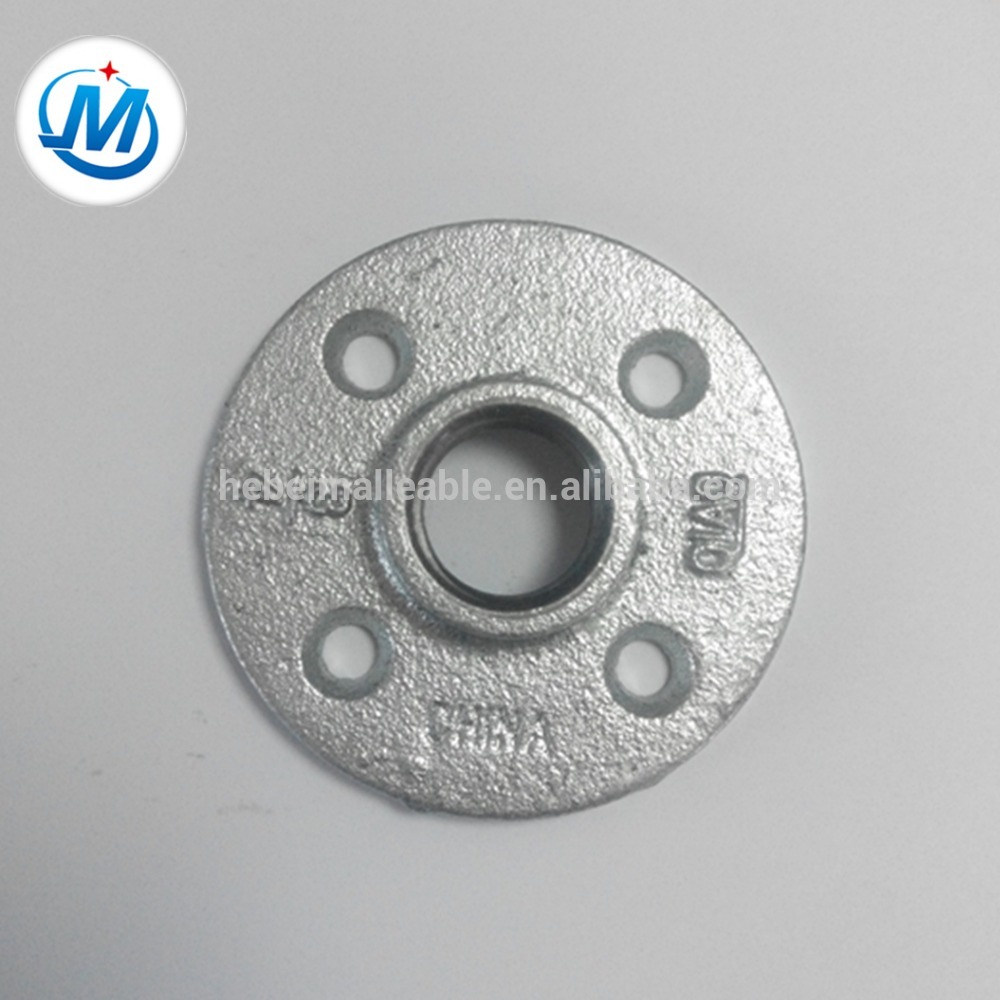

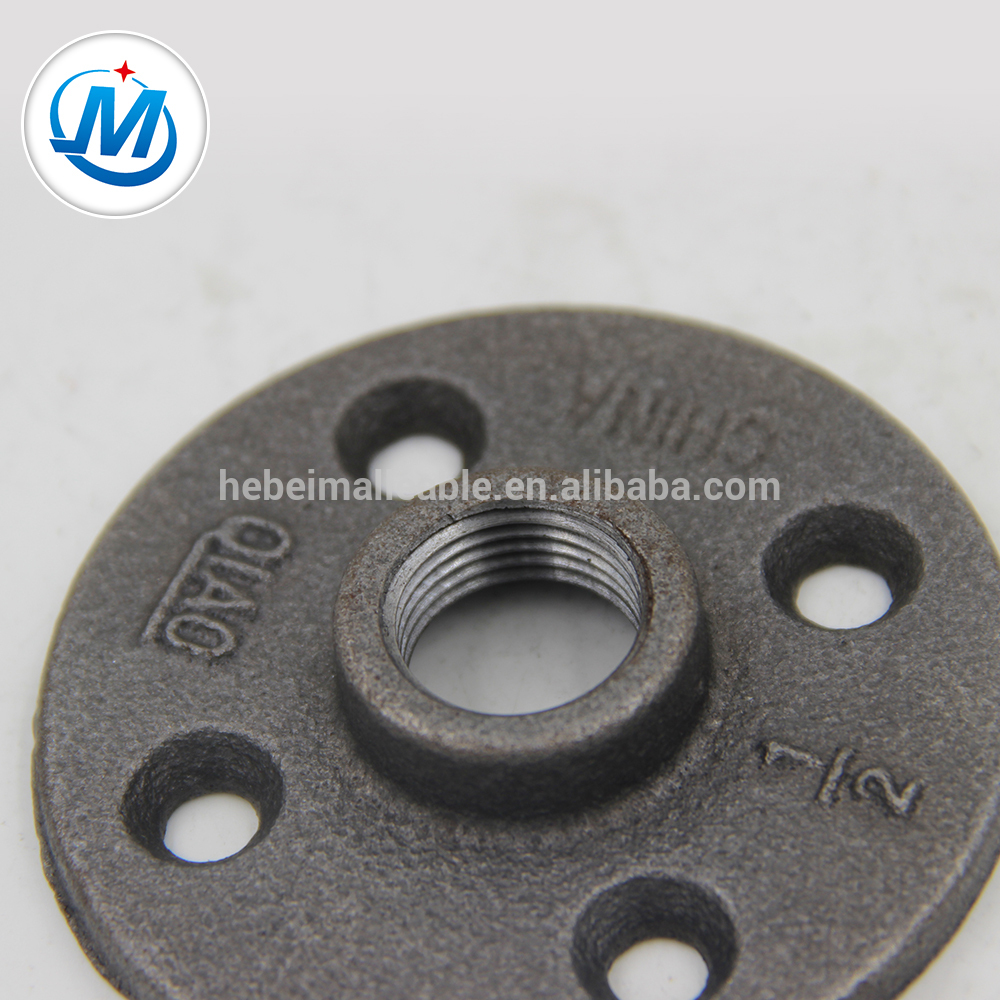

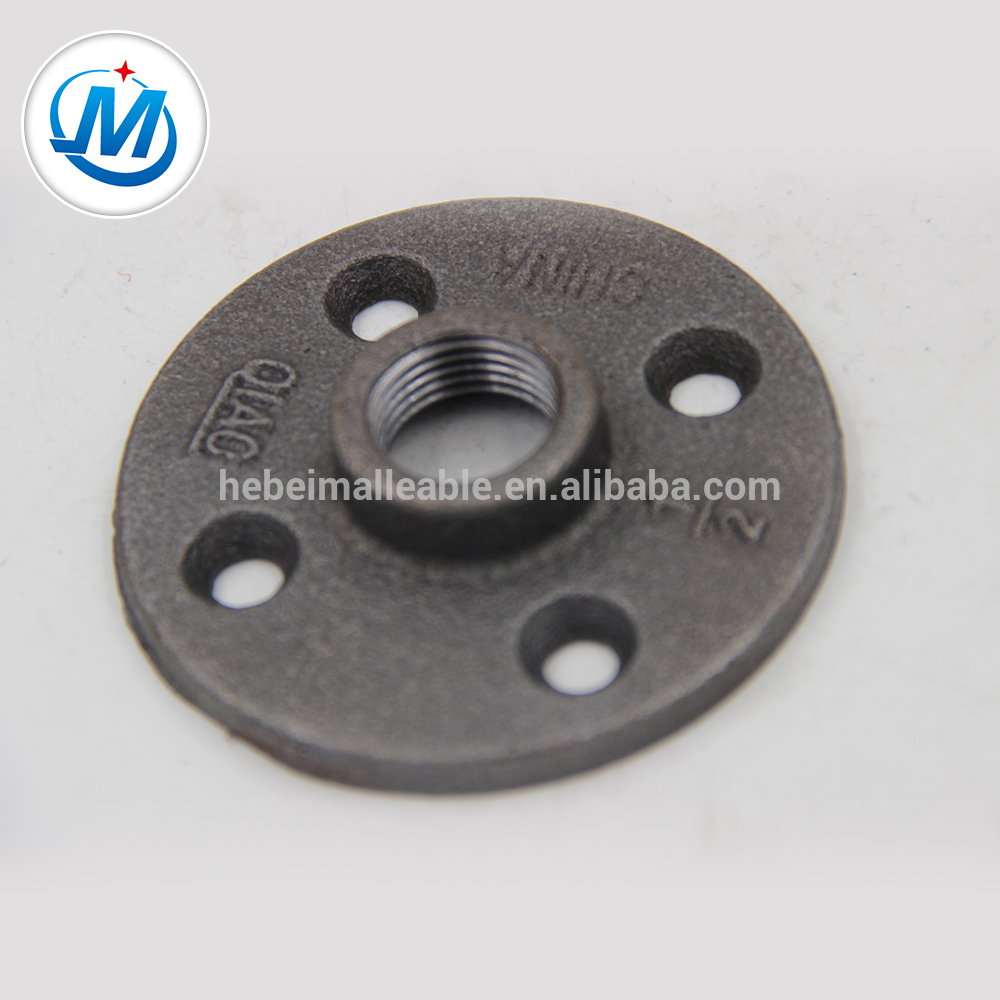

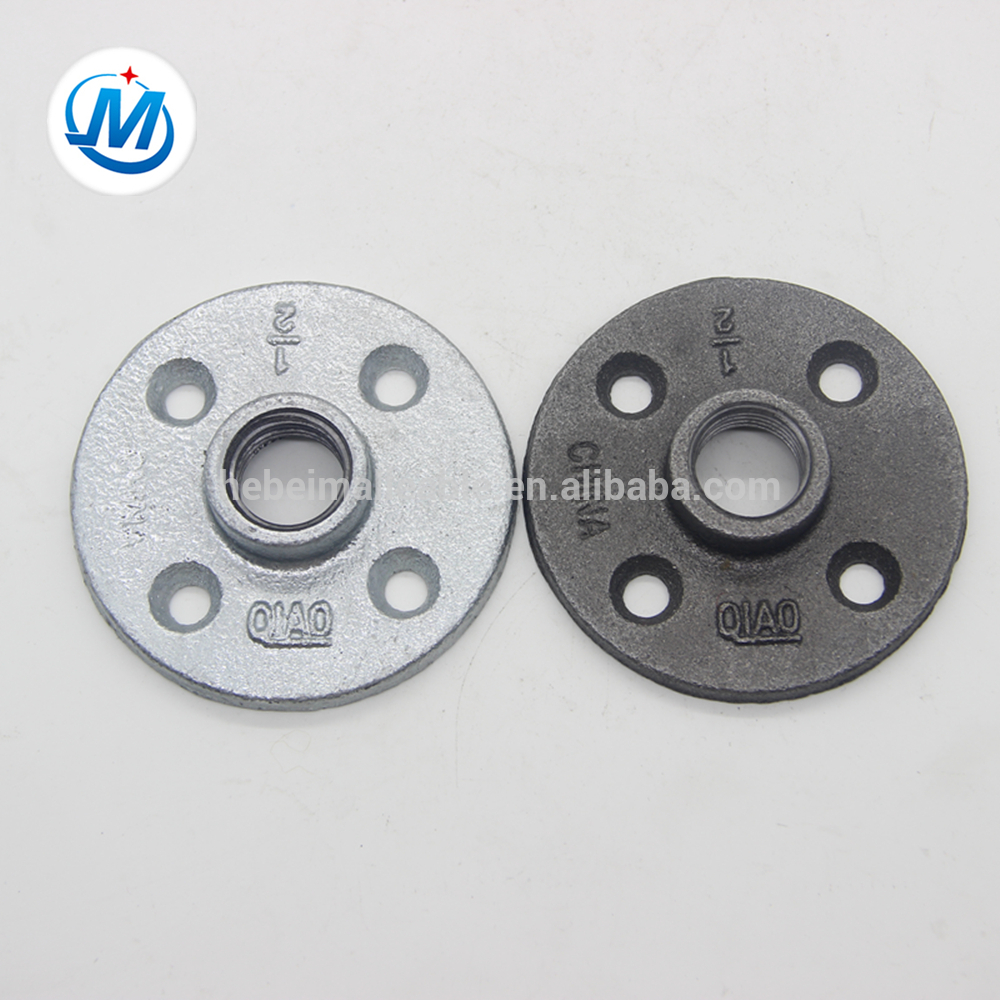

Product detail pictures:

Wholesale Price Cast Iron Pipe Connector -
 QIAO150 lbs 3/4" malleable iron pipe fitting thread flange with four holes – Jinmai Casting detail pictures

Wholesale Price Cast Iron Pipe Connector -
 QIAO150 lbs 3/4" malleable iron pipe fitting thread flange with four holes – Jinmai Casting detail pictures

Wholesale Price Cast Iron Pipe Connector -
 QIAO150 lbs 3/4" malleable iron pipe fitting thread flange with four holes – Jinmai Casting detail pictures

Wholesale Price Cast Iron Pipe Connector -
 QIAO150 lbs 3/4" malleable iron pipe fitting thread flange with four holes – Jinmai Casting detail pictures
