Top Quality Pipe Fittings Flange - china BS standard cast iron pipe fifting – Jinmai Casting

Top Quality Pipe Fittings Flange -
 china BS standard cast iron pipe fifting – Jinmai Casting

Short Description:

Overview Quick Details Material: Iron Technics: Casting Type: Elbow Place of Origin: Hebei, China (Mainland) Model Number: 90 Brand Name: QIAO QXMG CWD Connection: Female Shape: ...


Product Detail

Product Tags

Related Video

Feedback (2)

With our leading technology also as our spirit of innovation,mutual cooperation, benefits and advancement, we'll build a prosperous future together with your esteemed organization for 45 Degree Elbow , Malleable Iron Bend , Reducing Elbow , Our professional technical team will be wholeheartedly at your service. We sincerely welcome you to visit our website and company and send us your inquiry.
Top Quality Pipe Fittings Flange - china BS standard cast iron pipe fifting – Jinmai Casting Detail:

Overview
Quick Details
Material:
Iron
Technics:
Casting
Type:
Elbow
Place of Origin:
Hebei, China (Mainland)
Model Number:
90
Brand Name:
QIAO QXMG CWD
Connection:
Female
Shape:
Equal
Head Code:
round
Surface treatment:
hot dipped galvanized,electrical galvanized
Thread standard:
BS, NPT.DIN
Certificates:
ISO, BV
size:
1/8''–64''
Tensile strength:
>330N/MM
Working pressure:
1.6Mpa
Test pressure:
2.4Mpa
Hardness:
<HB180
Applicable scope:
connect the pipes with water,oil ,gas
Packing:
in cartons or bags
SupplyAbility
SupplyAbility:
2000 Ton/Tons per Month

Packaging & Delivery
Packaging Details
Strong and beautiful boxes, cartons, pallets. Inner packing: plastic bag.
Port
Xingang/Tianjin
Lead Time :
within 15 days after the prepaid

{“detailModule.supplyAbility.tip”:”If you finish the payment today, your order will ship out within the delivery date.”,”detailModule.supplyAbility.title”:”SupplyAbility”}

Specifications

china BS standard cast iron elbow 1.passed ISO9000 & BV
2.delivery time:15days
3.pressure:2.4Mpa

.richtext [data-maya] { width: 750px; font-size:14px; }

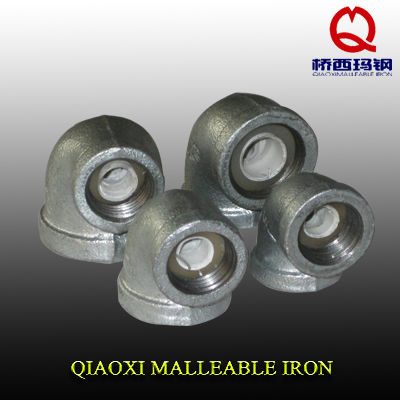

china BS standard cast iron elbow

Product category

Malleable iron pipe fittings

Types

Elbows, Tees, Crosses, Sockets, Nipples Bushings, Unions, Bends, Backnuts, Caps

Finishing

Hot Dipped Galvanized ,Electtro Galvanized, Black

Sizes

1/8"-6"

Brands

QIAO, QXM,CWD

Certificate

ISO9001, BV

Shape

Plain, Banded, Beaded

Connection types

Male ,Female, Male&Female

Dimension

EN 10242, ASME B 16.3, ISO 49, BS 143, SI255, ES 888

Malleable Iron Materials

KTH 350~10, KTH300~06,KTH 330~08 Black Heart

Thread Standard

ISO 7/1, NPT ANSI B1.20.1,DIN 2999

Mechanical data

and performance

Tensile strength >330N/mm
Working pressure is 1.6Mpa
Test pressure is 2.4Mpa
Hardness<HB180
Elongation>10%

Working Temperature:-20 to 300 degree

Packing

Inner packing: plastic bag

Outer packing: carton boxes

(QIAO a,315mm×245mm×195mm. QIAO b 465mm×315mm×205mm. c,405mm×315mm×205mm. d,320mm×240mm×20mm)

Application

These fittings are widely used as linkages of pipes for the transportation of water, oil, air, gas,etc.









2. company  introduction



We are Luquan Zhandao Qiaoxi Malleable Iron Pipe Fittings Co., Ltd,which is a professional factory of malleable iron fitting .our main product include:Elbow, Tee, Cross, socket, bends, cap, plug and so on .welcome to visit our our web and contact me directly :

http://www.qxmic.com





china BS standard cast iron pipe fifting

3.production line





china BS standard cast iron pipe fifting

4.packing



 china BS standard cast iron pipe fifting



5.certificate







6.other products





7.contact information

Tel     :  +86-0311-87036110

Fax    :  +86-0311-87873734





 Luquan Zhandao Qiaoxi Malleable Iron Pipe Fittings CO.,LTD.





 It will be our great honor to give you a quotation upon receipt of your detailed requirements.

We Believe that we are the best people and that we can always make the better products for you!
