Short Description:

Overview Quick Details Material: Iron, malleable iron Technics: Casting Type: Flange, Flange Place of Origin: Hebei, China (Mainland) Model Number: 321 Brand Name: CWD/QXM/QIAO Connection: Female ...


Product Detail

Product Tags

Related Video

Feedback (2)

Our firm sticks to the basic principle of "Quality is the life of your company, and status will be the soul of it" for Hex Nipple Pipe Fittings , Galvanized Pipe Socket , Flanges Pipe Fittings , We sincerely welcome friends to negotiate business and start cooperation with us. We hope to join hands with friends in different industries to create a brilliant future.
100% Original Ductile Cast Iron Pipe Fittings - QIAO npt 1/2"malleable iron threaded flange with four holes – Jinmai Casting Detail:

Overview
Quick Details
Material:
Iron, malleable iron
Technics:
Casting
Type:
Flange, Flange
Place of Origin:
Hebei, China (Mainland)
Model Number:
321
Brand Name:
CWD/QXM/QIAO
Connection:
Female
Shape:
Equal
Head Code:
Round
Standard:
BS /DIN /NPT
Size:
1/8"~6"
Certificate:
ISO9001 , BV
Usage:
water ,gas, oil and so on
Surface:
electric galvanized/hot galvanized/black
Tensile strength:
>330N/MM
Working pressure:
1.6Mpa
name:
flange
SupplyAbility
SupplyAbility:
2000 Ton/Tons per Month 25000 MT per year

Packaging & Delivery
Packaging Details

<dd class="do-entry-item-val" title="Strong and beautiful boxes, cartons, pallets. Inner packing: plastic bag.
flange”>Strong and beautiful boxes, cartons, pallets. Inner packing: plastic bag.
flange

Port
tianjin
Lead Time :
25 days after receiving the deposit

{“detailModule.supplyAbility.tip”:”If you finish the payment today, your order will ship out within the delivery date.”,”detailModule.supplyAbility.title”:”SupplyAbility”}

.richtext [data-maya] { width: 750px; font-size:14px; }



 1.Product specification



  QIAO npt 1/2"malleable iron threaded flange with four holes

Product category

Malleable iron pipe fittings

Types

Elbows, Tees, Crosses, Sockets, Nipples Bushings, Unions, Bends, Backnuts, Caps

Finishing

Hot Dipped Galvanized ,Electtro Galvanized, Black

Sizes

1/8"-6"

Brands

QIAO, QXM,CWD

Certificate

ISO9001, BV

Shape

Plain, Banded, Beaded

Connection types

Male ,Female, Male&Female

Dimension

EN 10242, ASME B 16.3, ISO 49, BS 143, SI255, ES 888

Malleable Iron Materials

KTH 350~10, KTH300~06,KTH 330~08 Black Heart

Thread Standard

ISO 7/1, NPT ANSI B1.20.1,DIN 2999

Mechanical data

and performance

Tensile strength >330N/mm
Working pressure is 1.6Mpa
Test pressure is 2.4Mpa
Hardness<HB180
Elongation>10%

Working Temperature:-20 to 300 degree

Packing

Inner packing: plastic bag

Outer packing: carton boxes

(QIAO a,315mm×245mm×195mm. QIAO b 465mm×315mm×205mm. c,405mm×315mm×205mm. d,320mm×240mm×20mm)

Application

These fittings are widely used as linkages of pipes for the transportation of water, oil, air, gas,etc.

We can also produce according to your needs.

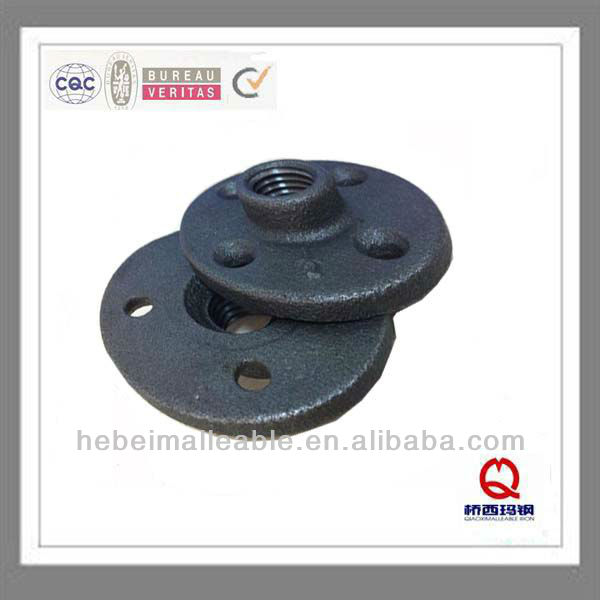

QIAO npt 1/2"malleable iron threaded flange with four holes
QIAO npt 1/2"malleable iron threaded flange with four holes

2.Company Introduction



     We are the professional manufacture of malleable iron pipe fitting more than 17 years. Our product selling well at Mid east, Romania, Poland, Most Europe Country, Columbia, Ecuador, Most Latin America, South America Country.



     A new automate production line help us to increase production ability to 2000 ton per month.

QIAO npt 1/2"malleable iron threaded flange with four holes

QIAO npt 1/2"malleable iron threaded flange with four holes



3.Product test and certification







4.Paking







Luquan zhandao qiaoxi malleable iron pipe fittings CO,.LTD







Tel:+86-311-87036110
Fax:+86-311-87873733



 It will be our great honor to give you a quotation upon receipt of your detailed

requirements.

We Believe that we are the best people and that we can always make the better

 products for you!
